电感式接近传感器

耐高温电感式传感器

 最高工作温度为230°C

 不绣钢外壳1.4305 St Stl

 不同的结构和尺寸，可靠的产品质量，温漂性能稳定

行业应用：汽车行业 / 包装行业 / 智能仓储 / 冶金工业 / 石油化工 / 印刷行业 / 机床行业 / 纺织行业 / 食品行业 / 工厂自动化

基本参数

  • M8
  • M12
  • M18
  • M30
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式

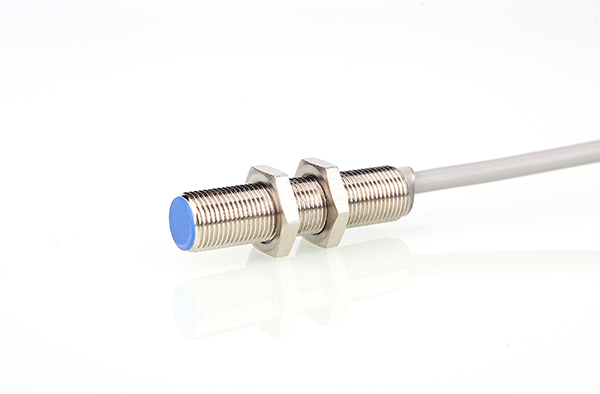

POH-M0802N1-DF3-140 M8 2mm Flush 齐平 NPN.NO 45mm Cable,2m,3-wire
POH-M0802N2-DF3-140 M8 2mm Flush 齐平 NPN.NC 45mm Cable,2m,3-wire
POH-M0802P1-DF3-140 M8 2mm Flush 齐平 PNP.NO 45mm Cable,2m,3-wire
POH-M0802P2-DF3-140 M8 2mm Flush 齐平 PNP.NC 45mm Cable,2m,3-wire

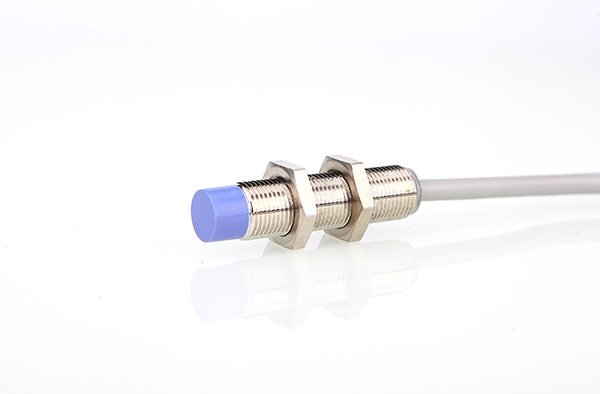

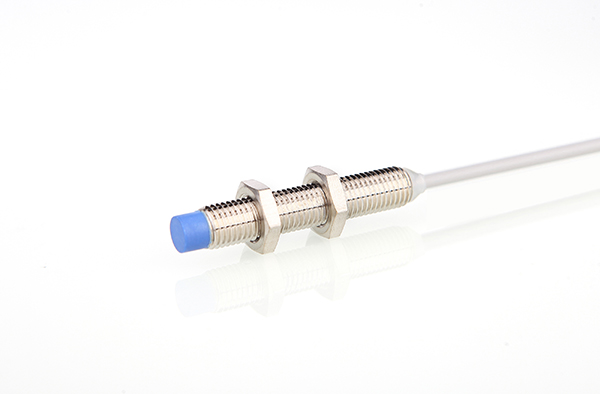

PHH-M0804N1-DF3-140 M8 4mm Non-flush 非齐平 NPN.NO 45mm Cable,2m,3-wire
PHH-M0804N2-DF3-140 M8 4mm Non-flush 非齐平 NPN.NC 45mm Cable,2m,3-wire
PHH-M0804P1-DF3-140 M8 4mm Non-flush 非齐平 PNP.NO 45mm Cable,2m,3-wire
PHH-M0804P2-DF3-140 M8 4mm Non-flush 非齐平 PNP.NC 45mm Cable,2m,3-wire
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式
POH-M1202N1-DF3-120 M12 2mm Flush 齐平 NPN.NO 50mm Cable,2m,3-wire
POH-M1202N2-DF3-120 M12 2mm Flush 齐平 NPN.NC 50mm Cable,2m,3-wire
POH-M1202P1-DF3-120 M12 2mm Flush 齐平 PNP.NO 50mm Cable,2m,3-wire
POH-M1202P2-DF3-120 M12 2mm Flush 齐平 PNP.NC 50mm Cable,2m,3-wire
PHH-M1204N1-DF3-120 M12 4mm Non-flush 非齐平 NPN.NO 50mm Cable,2m,3-wire
PHH-M1204N2-DF3-120 M12 4mm Non-flush 非齐平 NPN.NC 50mm Cable,2m,3-wire
PHH-M1204P1-DF3-120 M12 4mm Non-flush 非齐平 PNP.NO 50mm Cable,2m,3-wire
PHH-M1204P2-DF3-120 M12 4mm Non-flush 非齐平 PNP.NC 50mm Cable,2m,3-wire
POH-M1203N1-DF3-150 M12 3mm Flush 齐平 NPN.NO 50mm Cable,2m,3-wire
POH-M1203N2-DF3-150 M12 3mm Flush 齐平 NPN.NC 50mm Cable,2m,3-wire
POH-M1203P1-DF3-150 M12 3mm Flush 齐平 PNP.NO 50mm Cable,2m,3-wire
POH-M1203P2-DF3-150 M12 3mm Flush 齐平 PNP.NC 50mm Cable,2m,3-wire
PHH-M1204N1-DF3-150 M12 4mm Non-flush 非齐平 NPN.NO 50mm Cable,2m,3-wire
PHH-M1204N2-DF3-150 M12 4mm Non-flush 非齐平 NPN.NC 50mm Cable,2m,3-wire
PHH-M1204P1-DF3-150 M12 4mm Non-flush 非齐平 PNP.NO 50mm Cable,2m,3-wire
PHH-M1204P2-DF3-150 M12 4mm Non-flush 非齐平 PNP.NC 50mm Cable,2m,3-wire
POH-M1202N1-DF3-220 M12 2mm Flush 齐平 NPN.NO 50mm Cable,2m,3-wire
POH-M1202N2-DF3-220 M12 2mm Flush 齐平 NPN.NC 50mm Cable,2m,3-wire
POH-M1202P1-DF3-220 M12 2mm Flush 齐平 PNP.NO 50mm Cable,2m,3-wire
POH-M1202P2-DF3-220 M12 2mm Flush 齐平 PNP.NC 50mm Cable,2m,3-wire
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式

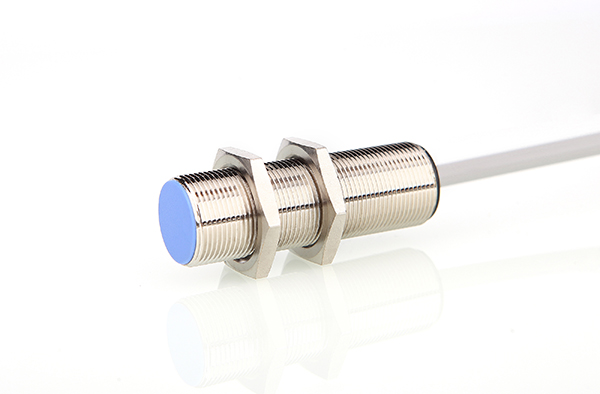

POH-M1805N1-DF3-120 M18 5mm Flush 齐平 NPN.NO 55mm Cable,2m,3-wire
POH-M1805N2-DF3-120 M18 5mm Flush 齐平 NPN.NC 55mm Cable,2m,3-wire
POH-M1805P1-DF3-120 M18 5mm Flush 齐平 PNP.NO 55mm Cable,2m,3-wire
POH-M1805P2-DF3-120 M18 5mm Flush 齐平 PNP.NC 55mm Cable,2m,3-wire

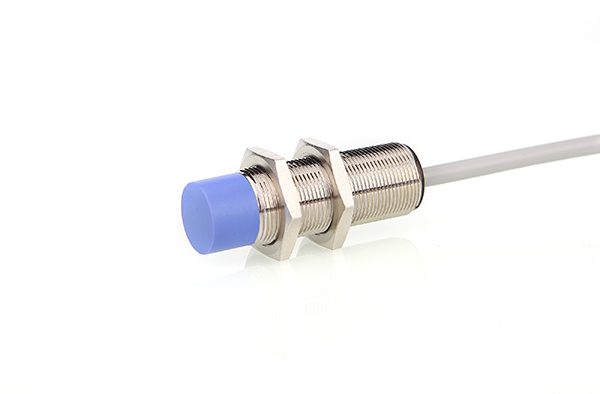

PHH-M1808N1-DF3-120 M18 8mm Non-flush 非齐平 NPN.NO 55mm Cable,2m,3-wire
PHH-M1808N2-DF3-120 M18 8mm Non-flush 非齐平 NPN.NC 55mm Cable,2m,3-wire
PHH-M1808P1-DF3-120 M18 8mm Non-flush 非齐平 PNP.NO 55mm Cable,2m,3-wire
PHH-M1808P2-DF3-120 M18 8mm Non-flush 非齐平 PNP.NC 55mm Cable,2m,3-wire
POH-M1805N1-DF3-150 M18 5mm Flush 齐平 NPN.NO 55mm Cable,2m,3-wire
POH-M1805N2-DF3-150 M18 5mm Flush 齐平 NPN.NC 55mm Cable,2m,3-wire
POH-M1805P1-DF3-150 M18 5mm Flush 齐平 PNP.NO 55mm Cable,2m,3-wire
POH-M1805P2-DF3-150 M18 5mm Flush 齐平 PNP.NC 55mm Cable,2m,3-wire
PHH-M1808N1-DF3-150 M18 8mm Non-flush 非齐平 NPN.NO 55mm Cable,2m,3-wire
PHH-M1808N2-DF3-150 M18 8mm Non-flush 非齐平 NPN.NC 55mm Cable,2m,3-wire
PHH-M1808P1-DF3-150 M18 8mm Non-flush 非齐平 PNP.NO 55mm Cable,2m,3-wire
PHH-M1808P2-DF3-150 M18 8mm Non-flush 非齐平 PNP.NC 55mm Cable,2m,3-wire
POH-M1805N1-DF3-230 M18 5mm Flush 齐平 NPN.NO 55mm Cable,2m,3-wire
POH-M1805N2-DF3-230 M18 5mm Flush 齐平 NPN.NC 55mm Cable,2m,3-wire
POH-M1805P1-DF3-230 M18 5mm Flush 齐平 PNP.NO 55mm Cable,2m,3-wire
POH-M1805P2-DF3-230 M18 5mm Flush 齐平 PNP.NC 55mm Cable,2m,3-wire
PHH-M1808N1-DF3-230 M18 8mm Non-flush 非齐平 NPN.NO 55mm Cable,2m,3-wire
PHH-M1808N2-DF3-230 M18 8mm Non-flush 非齐平 NPN.NC 55mm Cable,2m,3-wire
PHH-M1808P1-DF3-230 M18 8mm Non-flush 非齐平 PNP.NO 55mm Cable,2m,3-wire
PHH-M1808P2-DF3-230 M18 8mm Non-flush 非齐平 PNP.NC 55mm Cable,2m,3-wire
型号 照片 规格 感应距离 开关频率 安装方式 输出信号 产品长度 连接方式

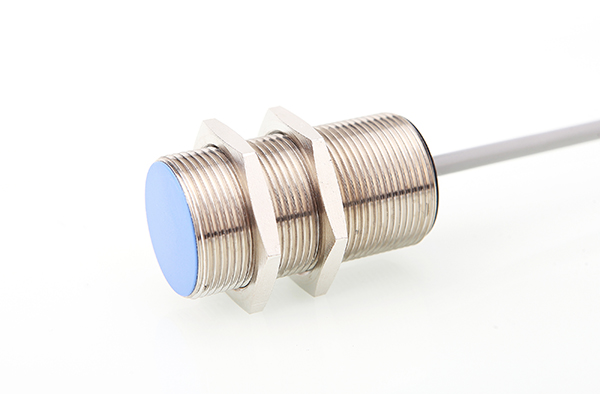

POH-M3010N1-DF3-180 M30 10mm Flush 齐平 NPN.NO 55mm Cable,2m,3-wire
POH-M3010N2-DF3-180 M30 10mm Flush 齐平 NPN.NC 55mm Cable,2m,3-wire
POH-M3010P1-DF3-180 M30 10mm Flush 齐平 PNP.NO 55mm Cable,2m,3-wire
POH-M3010P2-DF3-180 M30 10mm Flush 齐平 PNP.NC 55mm Cable,2m,3-wire

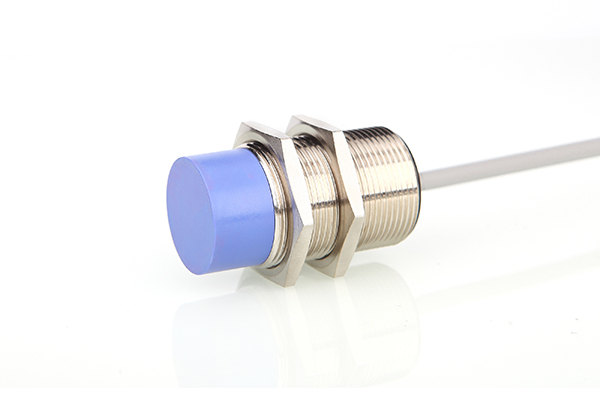

PHH-M3015N1-DF3-180 M30 15mm Non-flush 非齐平 NPN.NO 55mm Cable,2m,3-wire
PHH-M3015N2-DF3-18 M30 15mm Non-flush 非齐平 NPN.NC 55mm Cable,2m,3-wire
PHH-M3015P1-DF3-180 M30 15mm Non-flush 非齐平 PNP.NO 55mm Cable,2m,3-wire
PHH-M3015P2-DF3-180 M30 15mm Non-flush 非齐平 PNP.NC 55mm Cable,2m,3-wire
POH-M3010N1-DF3-230 M30 10mm Flush 齐平 NPN.NO 55mm Cable,2m,3-wire
POH-M3010N2-DF3-230 M30 10mm Flush 齐平 NPN.NC 55mm Cable,2m,3-wire
POH-M3010P1-DF3-230 M30 10mm Flush 齐平 PNP.NO 55mm Cable,2m,3-wire
POH-M3010P2-DF3-230 M30 10mm Flush 齐平 PNP.NC 55mm Cable,2m,3-wire
PHH-M3015N1-DF3-230 M30 15mm Non-flush 非齐平 NPN.NO 55mm Cable,2m,3-wire
PHH-M3015N2-DF3-230 M30 15mm Non-flush 非齐平 NPN.NC 55mm Cable,2m,3-wire
PHH-M3015P1-DF3-230 M30 15mm Non-flush 非齐平 PNP.NO 55mm Cable,2m,3-wire
PHH-M3015P2-DF3-230 M30 15mm Non-flush 非齐平 PNP.NC 55mm Cable,2m,3-wire
